Startseite /Produkte/Bohrmaschine DTH/Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale

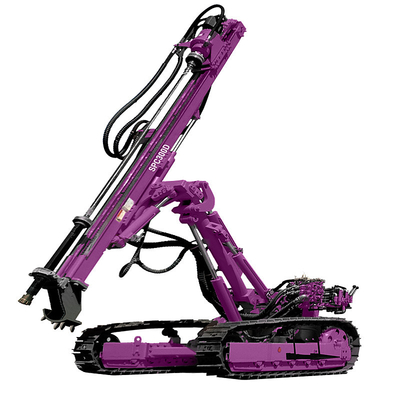

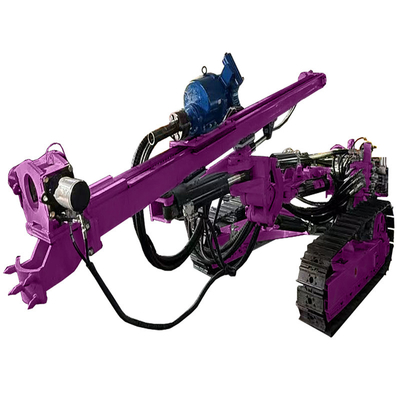

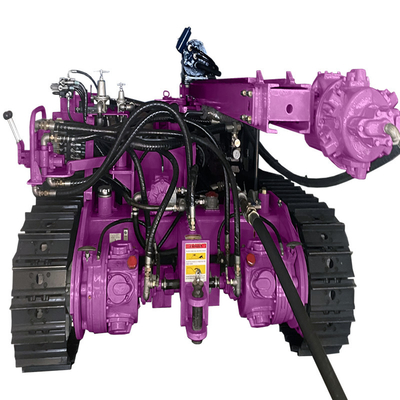

Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale

1 Satz/Sätze
MOQ
negotiable
Preis
Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Produktbezeichnung: RaupenÖlplattform
Leistung (W): 3.8KW
Power type: Diesel
Bohrtiefe: 20-30m
Bohrdurchmesser: 50 bis 115 mm
Gradierbarkeit: 35°
Schwenkwinkel: 13°
Luftmenge: 15 bis 25 m3/min
Drehdrehmoment: 365 N.m.
Luftverbrauch: 16m ³ /min
Arbeitsdruck: 1.0mpa
Kapazität des Hydraulikbehälters: 55 L
Drehgeschwindigkeit: 380 U/min
Maximale Vorwärtskraft: 11KN
Anwendung: Bergbau, Steinbruch, Bohrungssprengloch, Bergbau und Bau
Fahrgeschwindigkeit: 3.5Km/h
Merkmal: Hohe bohrende Leistungsfähigkeit, konkurrenzfähiger Preis
Abmessungen: 5777*2210*1942mm
Gewicht: 5400 kg
Typ: Drehbohrgerät
Bohrstange: T38, T45*3050/3660 mm
Zufuhr-Anschlag: 3980mm
Hervorheben:

Separated DTH Drilling Machine

,

Down The Hole Crawler Drilling Rig

,

DTH Drilling Rig
Grundinformation
Herkunftsort: Zhejiang, China
Markenname: Sanrock
Zertifizierung: CE ISO 9001:2015
Modellnummer: SPC300T Kundenspezifisch
Zahlung und Versand AGB
Verpackung Informationen: Nacktverpackung für Bohrgeräte; Holzverpackung für Ersatzteile; oder nach Kundenwunsch;
Lieferzeit: 18-25 Arbeitstage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 3000 Stück/Stück pro Monat
Produkt-Beschreibung

Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 0Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 1

A pneumatic ground drilling rig is a robust and versatile piece of construction equipment designed for efficient drilling operations in soil, rock, and other subsurface materials. Powered by high-pressure compressed air, this machinery utilizes pneumatic energy to drive rotary or percussive drilling mechanisms, enabling precise and rapid penetration into the ground.
Built with durable alloys and corrosion-resistant components, it ensures reliability in harsh environments while minimizing maintenance requirements.
Widely employed in mining, civil engineering, and environmental projects, this rig delivers high torque-to-weight performance and operational flexibility across diverse geological conditions.



Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 2









Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 3



Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 4

Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 5

Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 6

Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 7

Products Description

Product name
Drilling Rig
Model

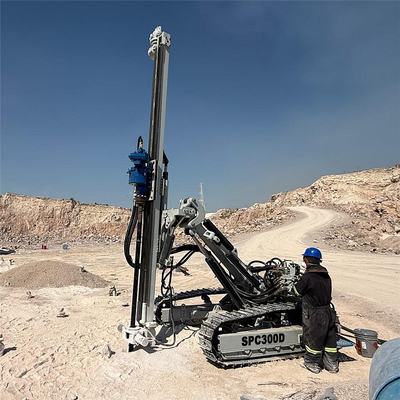

SPC300D
SPC300T
Dimension
6100*2200*2105mm
5777*2210*1942mm
Min.Ground Clearance
250 mm
250mm
Weight
5400 kg
5400kg
Travel Speed
0-3.5 km/h
0-3.5km/h
Travel Motor Power
8.8 kW x2
8.8 kW x2
Gradeability
35°
35°
Swing Angle
13°
13°
Rotary Head Power
3.7kw
3.8kw
Rotary Torque
2000 Nm (at 0.7 MPa)
365N.m
Max.Rotary Speed
70rpm
380rpm
Air Consumption
1.73 m³/min at 0.3Mpa
16m³/min at 0.55Mpa
Max.Air Pressure
2.5MPa
1.0Mpa
Air Quantity
15-25 m3/min
15-25m³/min
Drill rod
φ76,φ89 X3000 mm
T38, T45*3050/3660mm
Hydraulic tank capacity
18L
55L
Feed stroke
3980 mm
3980mm
Maximum forward thrust
11KN
11KN
Sliding frame swing
left 47°/right 54°
Left 47°/Right 54°
Drill boom tilt
Up 46°/Down 23°
Up 46°/Down 23°
Drill boom swing
Left 40°/Rght 40°
Left 40°/Right 40°




Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 8

Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 9

Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 10Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 11

Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 12

Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 13

Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 14Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 15

Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 16Down The Hole Drilling Machine Separated DTH Drilling Rig Crawler Drilling Rig for sale 17
