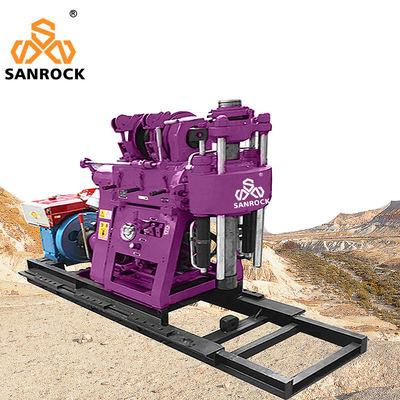

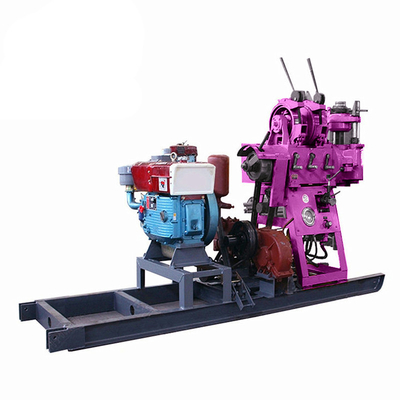

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine

1Set/Sets pro Monat
MOQ
negotiable
Preis
Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Produktbezeichnung: hydraulisches Bohrgerät für den Kern
Name: Kernbohrmaschine
Anwendung: Kernmaschine, Geologische Prospektion,
Leistungstyp: Diesel
Bohrtiefe: 180m
Bohrdurchmesser: 75-220mm
Gleichstellende Leistung:: 13.2kw
Abmessungen: 2400*800*1400mm
Gewicht: 750 kg
Hebekraft: 60K.N.
Max. Drehmoment: 980N.m.
Schubkraft (K.N): 40K.N.
Aufzugsgeschwindigkeit: 00,35 bis 2,23 m/min
Nennlast: 180 Tonnen
Typ: Kernbohranlage
Gebrauch: Wasserbrunnen, Kohle, Wasserbrunnen. Kernprobe
Besonderheit: Hohe Bohreffizienz, tragbare, geologische Bohrmaschine
Hervorheben:

Rotary Core Drilling Rig

,

Diamond Core Drill Machine

,

Diamond Core Drilling Equipment

Grundinformation
Herkunftsort: Zhejiang, China
Markenname: SANROCK
Zertifizierung: CE ISO 9001:2015
Modellnummer: Einheitliche Datenbank
Zahlung und Versand AGB
Verpackung Informationen: Nacktes Paket für Maschinen, Holzkistenpaket für Ersatzteile, oder nach Kundenwunsch.
Lieferzeit: 18 Arbeitstage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 5000Sets/Sets pro Monat
Produkt-Beschreibung

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 0Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 1
Compact Wheel-Mounted Core Drilling Rig
This portable core drilling system combines maneuverability with precision engineering for efficient subsurface sampling. Featuring a robust wheel-mounted chassis with terrain-adaptive tires, the rig ensures stable operation across various ground conditions while maintaining easy relocation. Powered by a [diesel/electric] engine, it drives hardened diamond-tipped core barrels to extract intact cylindrical samples from concrete, asphalt, and geological formations.

Feature:
Feeding by hydraulic cylinder, the drilling efficiency is higher and it can save labor. The machine is equipped with taper clutch,with characteristics of strong torque transmission, easy operation and free maintenance.
Vertical spindle are fixed by four groups of bearings to ensure that rotator has enough rigid for gravel layer and other complex geological conditions.

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 2

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 3

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 4

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 5









Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 6

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 7

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 8

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 9



Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 10

Products Description

Product Name: Core Drilling Rig
Model:SRC180
Drilling depth: 180m
Open hole dia:220mm
End hole dia:75mm
Drill rod dia:42-60mm
Drill angle:90-75°
Matching power:13.2kw
Weight without power :620/750kg
Dimensions :2400*800*1400mm
Speed :130/300/480/730/830/1045 r/min
Stroke :450mm
Max.torque :980N.m
Thrust :40k.N
Lifting force :60K.N
Single rope lift force :2100kg
Lifting speed head :0.35-2.23m/min
Rope dia:D9.3mm
Roll capacity :27m
Rated load :18ton
Height:6.5m
Displacement :95L/min
Max.pressure :1.2MPa
Times :93per min
Inlet hose dia:51mm
Outlet hose dia:32mm




Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 11Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 12

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 13



Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 14Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 15

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 16Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 17

Company Profile

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 18

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 19

Portable Core Drilling Rig Rotary Borehole Drilling Equipment Diamond Core Drill Machine 20

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
