Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment

1Set/Sets pro Monat
MOQ
negotiable
Preis
Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Produktname: Crawler -Bohrgerät, Bohrmaschine
Name: DTH-Bohrgerät, integrierte Bohrgeräte
Leistung: 264Kw
Power -Typ: Diesel
Bohrtiefe: 28m
Bohrdurchmesser: 90-165 mm
Fütterungskraft: 12 KN
Hebenskraft: 18kn
Drehdrehmoment: 3300N.m
Arbeitsdruck: 20bar
Luftverbrauch: 190,8 m3/min
Rotations-Rate: 0-85 U/min
Anwendung: Bohrrohrbohrer -Bergbau Steinbruch, Sprenglochbohrung
Besonderheit: Hohe bohrende Leistungsfähigkeit, hydraulische Kontrolle, Multifunktions
Leistungsfähigkeit: 20 °
Dimension (l*w*h): 9920*2700*3300 mm
Gewicht: 25000 kg
Hervorheben:

Surface DTH drilling rig 28m depth

,

Crawler blast hole drill rig

,

Integrated drilling equipment with warranty
Grundinformation
Herkunftsort: Zhejiang, China
Markenname: SANROCK
Zertifizierung: CE ISO 9001:2015
Modellnummer: S75
Zahlung und Versand AGB
Verpackung Informationen: Nacktpaket für Maschinen, Holzkastenpaket für Ersatzteile oder Kundennachfrage.
Lieferzeit: 15-30 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 300Sets/Sets pro Monat
Produkt-Beschreibung

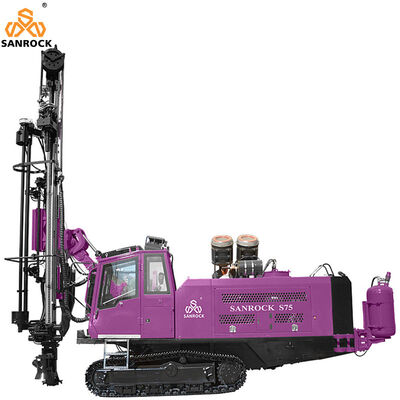

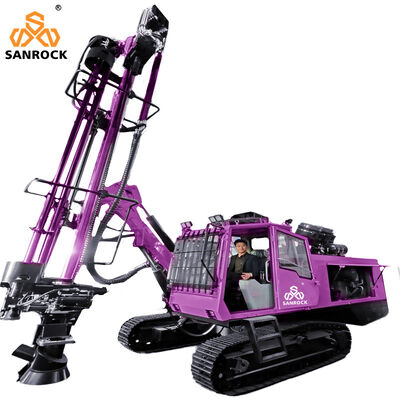

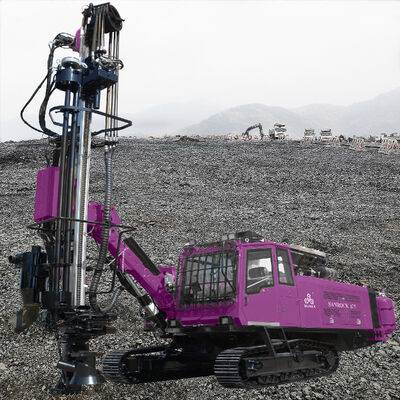

Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 0Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 1Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 2
S75 is an All-In-One hydraulic DTH drilling rig, which equipped double cycloid motors can output massive torque and reduce possiblility of pipe-stuck situation. And the rotation rate can be continously adjusted according to differet rock formations. The imported seals for the rotation unit is with extraordinary performance and long service life. The high-output Atlas Copco air compressor features two stages of compression, powerful and realiable.

The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection. High degree of automation, efficient drilling, simple operation, flexible maneuverability, single operator for labor cost. Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed. Can easily cope with all kinds of drilling angel requirement of landscapes. The advantageous functions such as precise boom positioning,automatic rod handling.

It is mainly used for drilling rock hole, such as rock bolt hole, anchor cable hole, blasthole, injected hole etc, at urban construction project, rod construction project, surface mining, high altiude surface mining, foundation pit construction, large scale open-bit mining, road slope protection project etc.

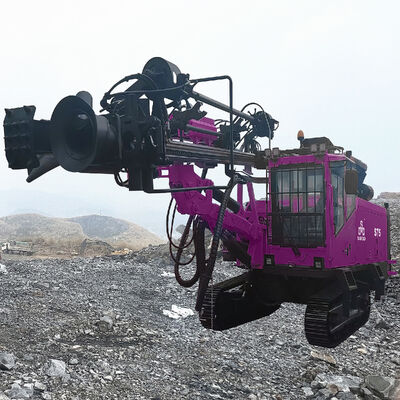

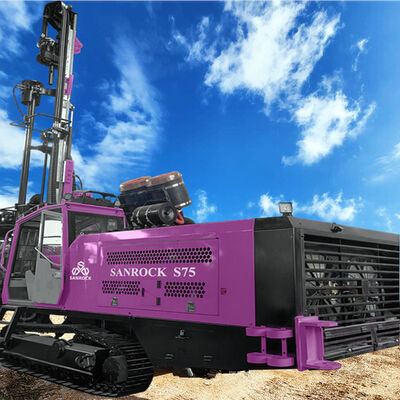

Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 3Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 4Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 5Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 6

Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 7

Product Description
Product name
DTH Drilling Machine
Power Type
Diesel
Key Selling Points
High efficiency, high production capacity,Competitive Price
Application
Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Working Pressure
20 bar
Max. FAD
19.8 m³/min
Feeding Stroke
4750 mm
Feed Extension
1100 mm
Engine Model
QSL8.9-C360-30
Engine Type
Water-cooled Six-cylinder EFI Diesel Engine
Rared Power
264/2100 kw/rpm
Fuel Tank Capacity
600 L
Rotation Rate
0-85 rpm
Max. Rotation Torque
3300Nm
Feeding Method
Hydraulic Motor+Chain
Feeding Force
12 KN
Lifting Force
18 KN
Track Width
350 mm
Ground Clearance
≥400 mm
Track Oscillation
±10°
Walking Speed
2/3 km/h
Grade Ability
20°
Collecting Method
Hydraulic Dust Collecting


Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 8Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 9Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 10

Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 11



Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 12Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 13

Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 14

Company Information

Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 15

Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 16

Surface DTH Drilling Rig Depth 28m Crawler Blast Hole Drill Rig Integrated Drilling Equipment 17

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
