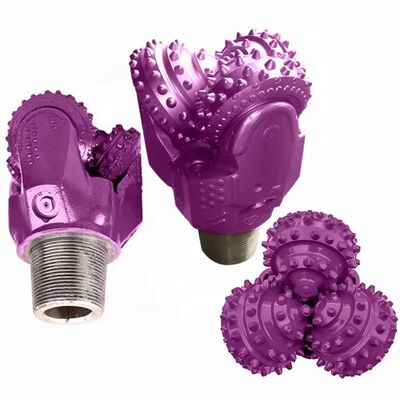

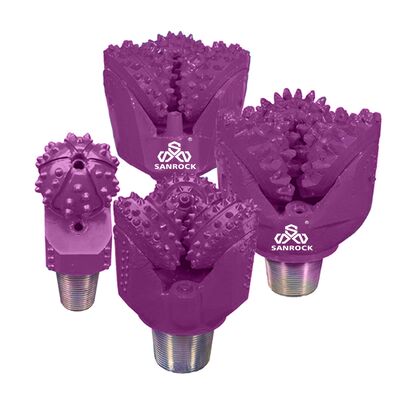

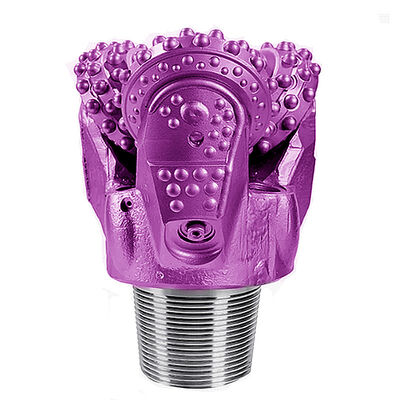

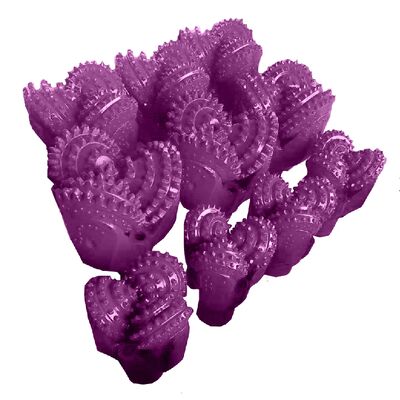

Tricone Drilling Bits Water Well and Oil Well Drilling API Steel Tooth Roller Cone Bit for Sale

Prior to operation, verify the bit matches the target formation hardness and diameter specifications.Securely attach the bit to the drill string using recommended torque values, ensuring cones rotatefreely without obstruction.

Maintain drilling parameters within manufacturer-specified ranges: typically 50-300 RPM rotary

speed, 2-8 tons weight-on-bit (WOB), and sufficient mud flow rate (adjusted for hole size) to cool

bearings and flush cuttings. Avoid sudden load spikes—gradually increase WOB after initial penetration.

Continuously monitor torque/vibration spikes indicating cone locking or formation changes.

For hard abrasive strata, prioritize intermittent rotation to prevent overheating.

Post-use, thoroughly clean bit surfaces and bearings with pressurized fluid, inspecting teeth for chipping,

bearing seals for wear, and lubricant ports for blockage. Store horizontally in dry, temperature-controlled

environments to prevent corrosion. Replace immediately if cones exhibit excessive play (>3mm radial

movement) or insert loss exceeds 30%.

Products Description

Notes for the use of roller cone bits:
1 .Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.
2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.
3. Run in hole needs to be stable, avoid stress and prevent drilling.
4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.
5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, smalldrilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.
6. Determine the weight on bit and speed in combination with the actual conditions of the formation.
7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.
8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.
