Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine

1 Satz/Sätze
MOQ
negotiable
Preis
Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Leistungstyp: Diesel
Name: Pile-Fahrer
Motormodell:: 73,5 kW/78 kW
Motortyp: Wassergekühlter Sechszylinder-EFI-Dieselmotor
Lochdurchmesser: 90-160mm
Stablänge: 3m
Stabdurchmesser: 60/64/76 mm
Spurbreite: 253mm
Grundausweis: 420mm
Leistungsfähigkeit: 30°
Hydraulikdruck: 18bar (Hochdruck)
Rotations-Rate: 0 bis 140 U/min
Max. Drehmoment: 3220Nm
Fütterungskraft: 6KN
Hebekraft: 16kn
Fütterungsschlag: 4105 mm
Abmessung (L*B*H): 5500*2100*2200mm
Gewicht: 5600kg
Hervorheben:

Hydraulic pile driver machine

,

Multiangle drilling pile driver

,

Rotary borehole pile driving machine
Grundinformation
Herkunftsort: Zhejiang, China
Markenname: Sanrock
Zertifizierung: IOS9001 CCC
Modellnummer: SRP160A
Dokumentieren: Pile Driver and Rotary Dril...ig.pdf
Zahlung und Versand AGB
Verpackung Informationen: in einem Holzkarton, dann in einem Seebehälter
Lieferzeit: 15-25 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 1000 Set/Sets pro Monat
Produkt-Beschreibung

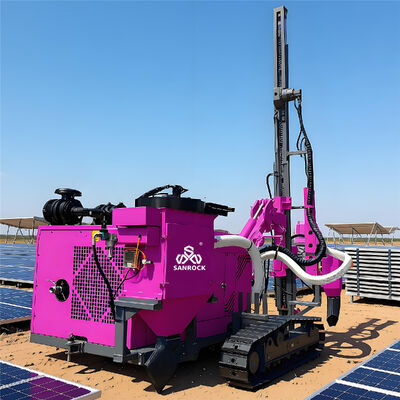

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 0

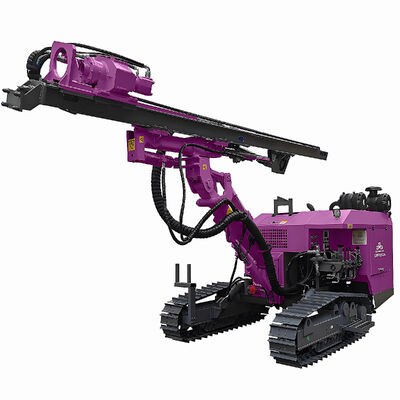

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 1

This full hydraulic piling rig adopts a hydraulic drive system to deliver high torque and stable power output, featuring precise speed and angle control. Equipped with an adjustable drill mast and sturdy crawler chassis, it supports multi-angle drilling, anchoring and piling operations across soil, gravel and rock strata. It boasts high construction efficiency, low vibration and reliable overall performance. Widely used for slope reinforcement, deep foundation pit support, anti-floating anchoring, new energy foundation construction and municipal infrastructure projects, it adapts well to complex terrain and meets diverse geotechnical engineering requirements.

Full hydraulic anchoring piling rig with flexible angle adjustment and high drilling precision. The hydraulic system ensures steady power and smooth operation, suitable for slope stabilization, foundation reinforcement, photovoltaic piling and infrastructure construction on various ground conditions.

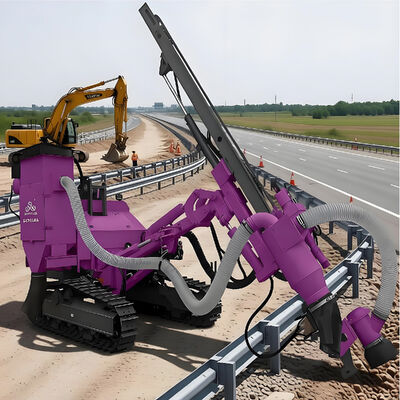

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 2

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 3

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 4

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 5

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 6

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 7


Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 8


Products Description

Brand Name:SANROCK
Product Name:Pile Driver
Engine Model: 73.5KW /78KW
Engine Type:Water-cooled six-cylinder EFI diesel engine
Rated power:73.5/2200Kw/RPM,78/2200Kw/RPM
Drill rod changer
Hole diameter :90-160mm
Rod length:3m
Rod diameter:60/64/76mm
Rod quantity:7
Dust collector :Dry tydraulic dust collecting method (Wet type optional)
Undercarriage
Track width :253mm
Groundclearance :420mm
Track oscillation :±10°
Walking speed :low 2, high 3 km/h
Grade ability:30°
Hydraulic system
Hydraulic pressure :18bar (high pressure)
Rotation motor
Rotation rate :0-140rpm
Max. rotation torque :3220Nm
Feeding method  Cylinder plus chain
Feeding force :6KN
Lifting force :16KN
Feeding stroke :4105mm
Promote compensation :1250mm
Dimension(L*W*H):5500*2100*2200mm
Weight:5600kg

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 9


Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 10

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 11

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 12

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 13

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 14

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 15

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 16

Company Introduction

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 17

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 18

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 19

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 20

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 21




Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 22

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine 23

1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.What can you buy from us?
DTH drilling rig  Integrated DTH DTH drilling rig  water well drilling rig  truck mounted water well drilling rig core drilling rig  reverse circulation drilling rig  highway pile driver  solar pile driver   anchor pile driver   rotary drill rig  Top Hammer drill rig Underground jumbo drill rig  DTH hammer  screw air compressor  piston air compressor  pneumatic rock drill   drill rod   drill bit   PDC drill bit   top hammer drill bit   tricone bit  spare parts
3.How is the shipment?   How long dose it take?
 A: For large quantity or heavy products, we ship by sea shipping or land shipping.   Shipping efficiency depends on country and city you want to ship to.   For small and delicate products, we ship by DHL, UPS, Fedex or TNT.  You can also appoint shipping method you like before we ship.
 4.How is your quality control?
A: We have our own experienced QC.  There will be strict inspection and testing for every order before shipping out.
